BenQ AK700ST 4K Golf Simulator Projector

Dialed-in visuals. Faster setup. Built for serious golf simulators.

The BenQ AK700ST is purpose-built for golf simulation, delivering true 4K UHD clarity, bright 4,000-lumen output, and intelligent Auto Screen Fit technology that dramatically simplifies projector setup. Designed for simulator environments where precision matters, this short-throw laser projector keeps shadows out of the swing path while locking crisp visuals onto the impact screen.

With golf-optimized color tuning and a sealed, garage-ready optical engine, the AK700ST is a long-term, low-maintenance solution for premium home simulators, garages, and commercial-style practice bays.

Why Buy From Precision Simulators
Precision Simulators is an authorized dealer for the brands we carry. All projectors ship directly from the manufacturer or authorized distributor and are priced in compliance with manufacturer policies.

Our team is available to assist with projector selection, throw distance planning, mounting options, and simulator compatibility before and after purchase.

Details

The BenQ AK700ST is engineered specifically for golf simulator use, combining high-end image quality with installation features designed to reduce setup time.

Native 4K UHD resolution produces razor-sharp detail across the impact screen, enhancing ball flight visibility, terrain detail, and depth perception.

With 4,000 ANSI lumens of brightness and a laser light source rated for up to 20,000 hours, the projector performs confidently in rooms with ambient light while eliminating the need for lamp replacements.

Auto Screen Fit technology automatically sizes, aligns, and focuses the image to match your impact screen, significantly reducing manual adjustments during installation.

A short-throw lens allows large images to be projected from close range, keeping the projector safely behind the golfer and out of the swing zone.

An IP5X-rated sealed optical engine resists dust and debris, making the AK700ST well suited for garages, basements, and high-use simulator environments.

Before You Order

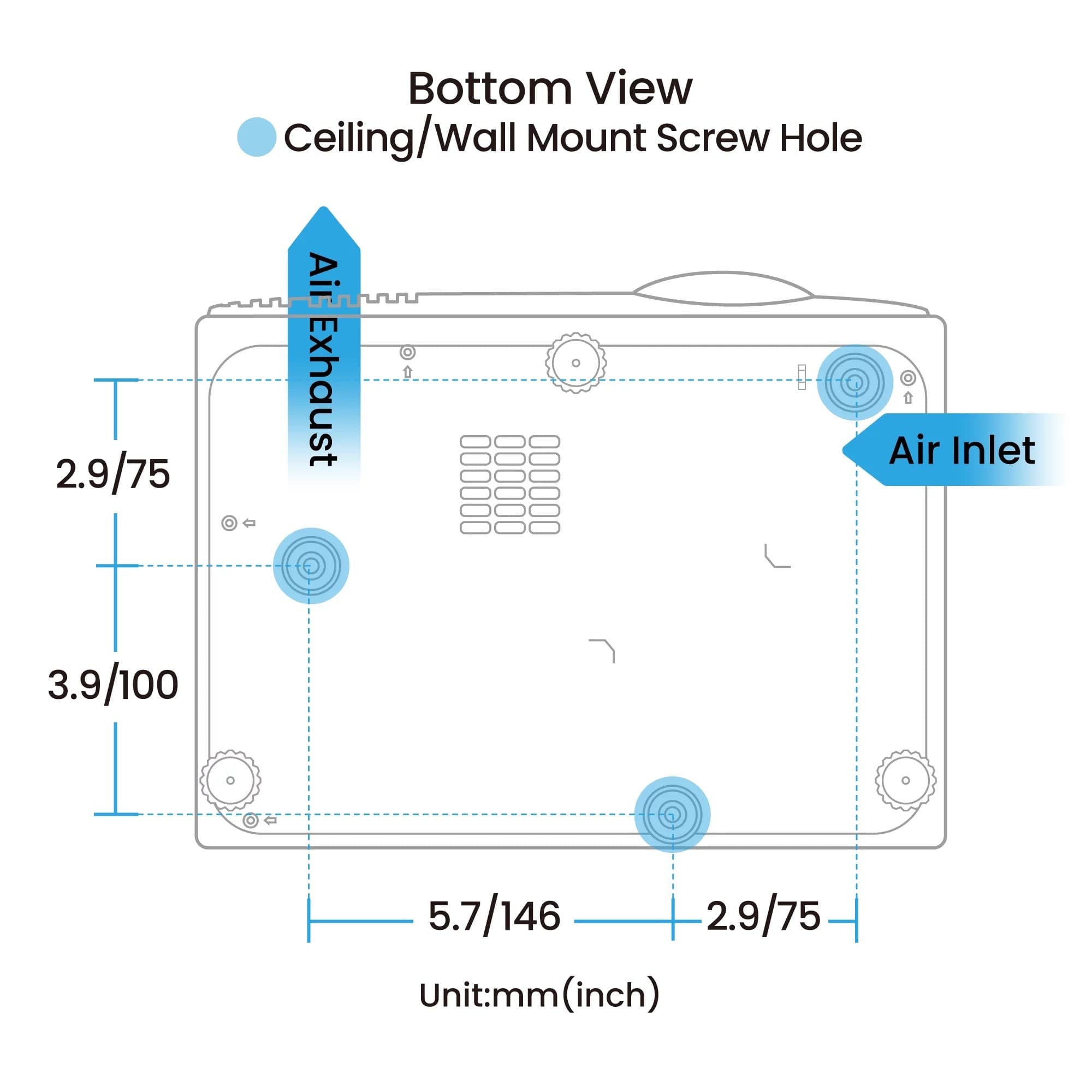

Projector Mounting Considerations

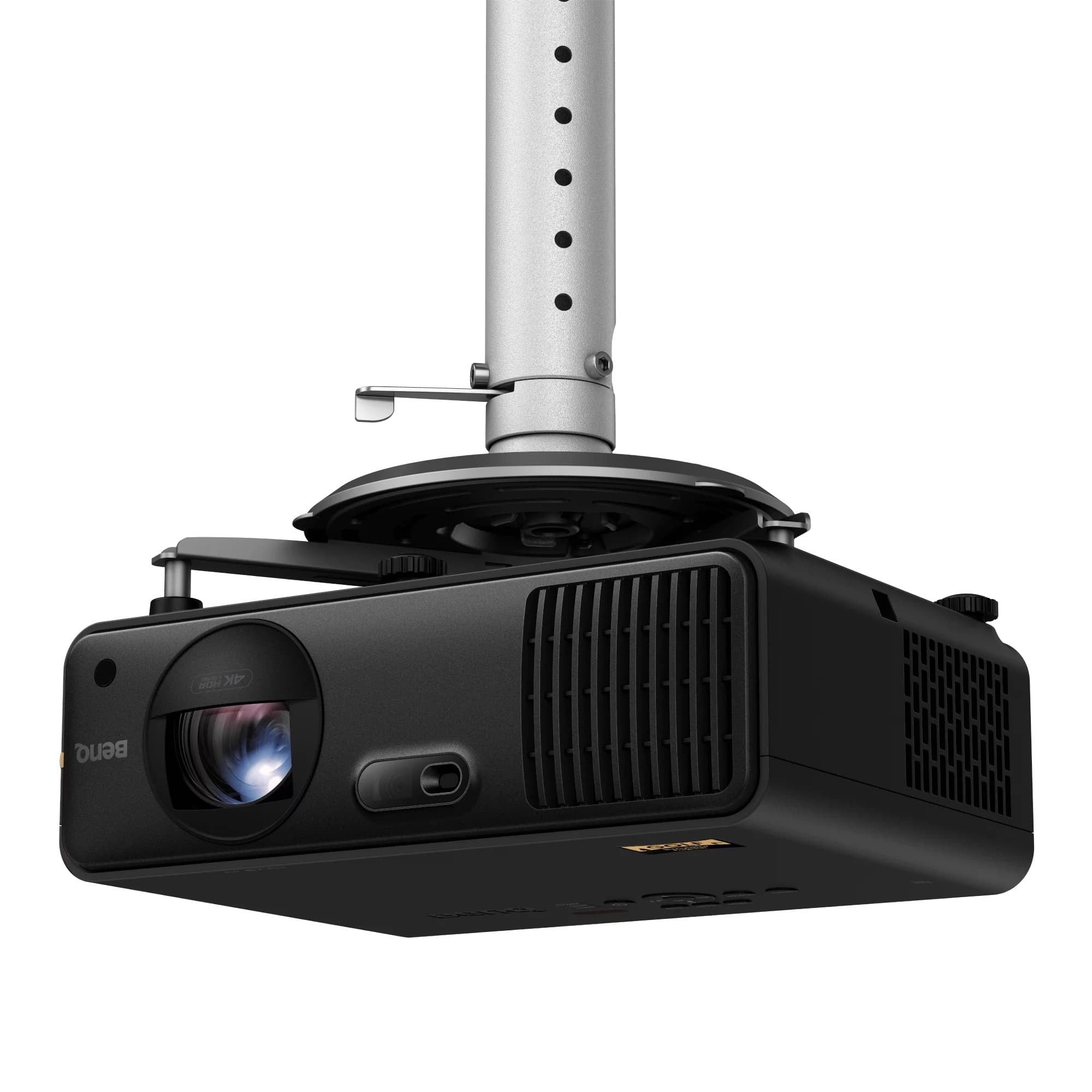

Ceiling Mount
Mounting the projector flush to the ceiling keeps the unit clear of the swing path while minimizing shadows and delivering a clean, professional installation.

Drop Mount
For higher ceilings or fine-tuned image alignment, a drop mount allows the projector to be positioned at the optimal height.

Mounting to an Enclosure
The projector can be mounted directly to the frame of a Pro Golf Enclosure for a sturdy, integrated setup with added protection.

Floor Placement
In some simulator layouts, floor placement is preferred. A dedicated projector enclosure protects the unit while maintaining swing safety.

The short-throw design allows the projector to fill large screens while staying clear of the hitting area and minimizing shadows.

How Auto Screen Fit Works

Position the projector so the projected image slightly overfills the screen.

Power on the projector and begin Auto Screen Fit when prompted.

Adjust distance, tilt, and zoom so the alignment pattern fits within the screen borders.

Confirm placement and allow Auto Screen Fit to automatically size and align the image.

Fine-tune individual corners if needed for a precise fit.

Warranty & Returns

This product ships directly from the manufacturer or authorized distributor and is covered by the manufacturer’s warranty, where applicable.

Projectors are electronic equipment. Return eligibility, restocking fees, and warranty coverage vary by manufacturer and order status, including special order designation.

Please review our Returns Policy before purchasing for full details on eligibility, conditions, and exclusions.

Accessories

Compatible accessories may include:

Golf simulator enclosures

Impact screens

Projector mounts or enclosures

Simulator computers

Hitting mats and turf systems

Accessories and display equipment are sold separately unless otherwise stated.

 stated.

Resources

What’s Included

BenQ AK700ST golf simulator projector
Power cable and adapter

Specifications

Brightness
4,000 ANSI lumens

Resolution
4K UHD, 3840 by 2160

Native aspect ratio
16:9

Contrast ratio
3,000,000 to 1

Light source
Laser

Light source life
Up to 20,000 hours

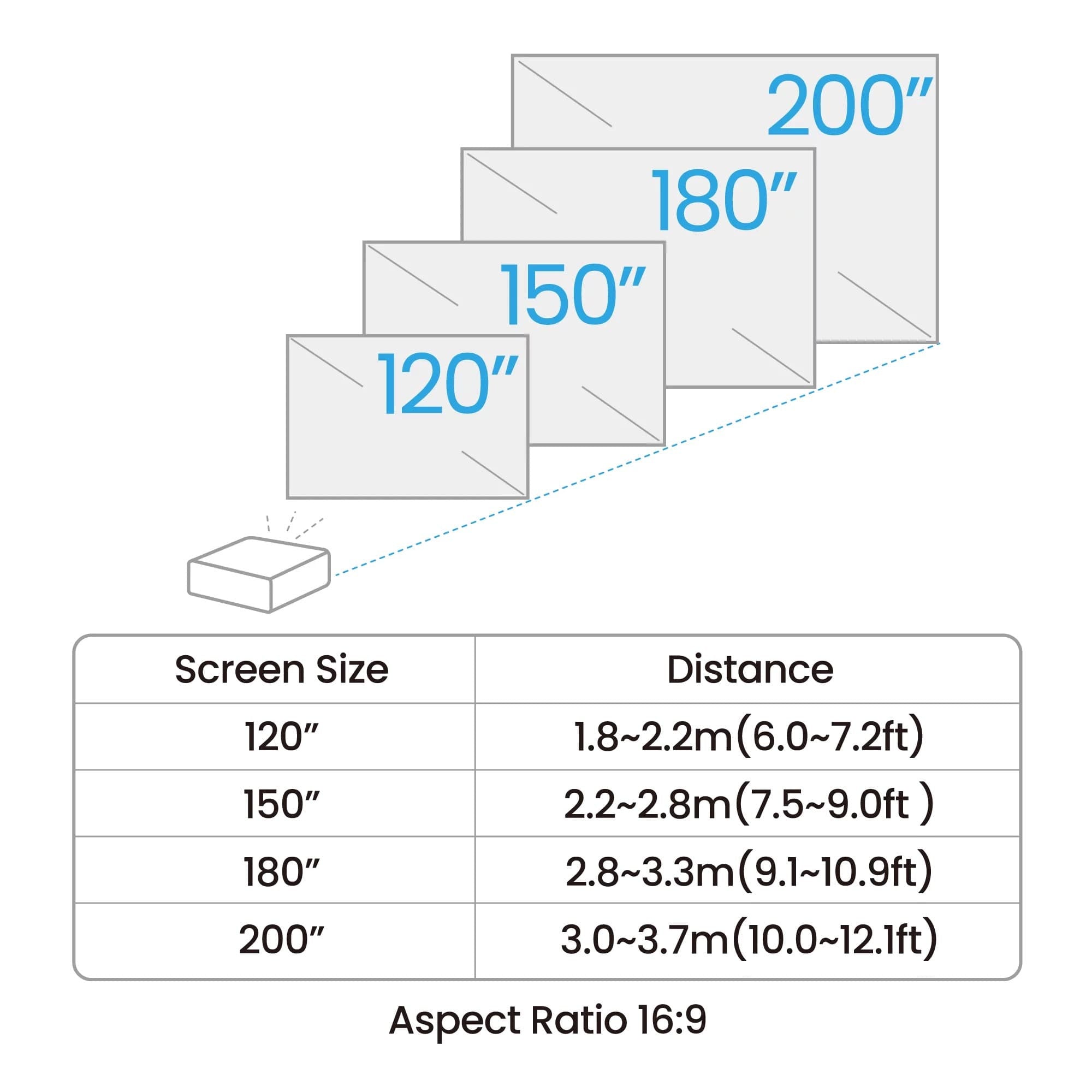

Throw ratio
0.69 to 0.83

Zoom
1.2x optical

Projection offset
102.5 percent

Keystone correction
Vertical, horizontal, and rotation plus or minus 30 degrees

Warping
Supported, disables Auto Screen Fit and keystone when enabled

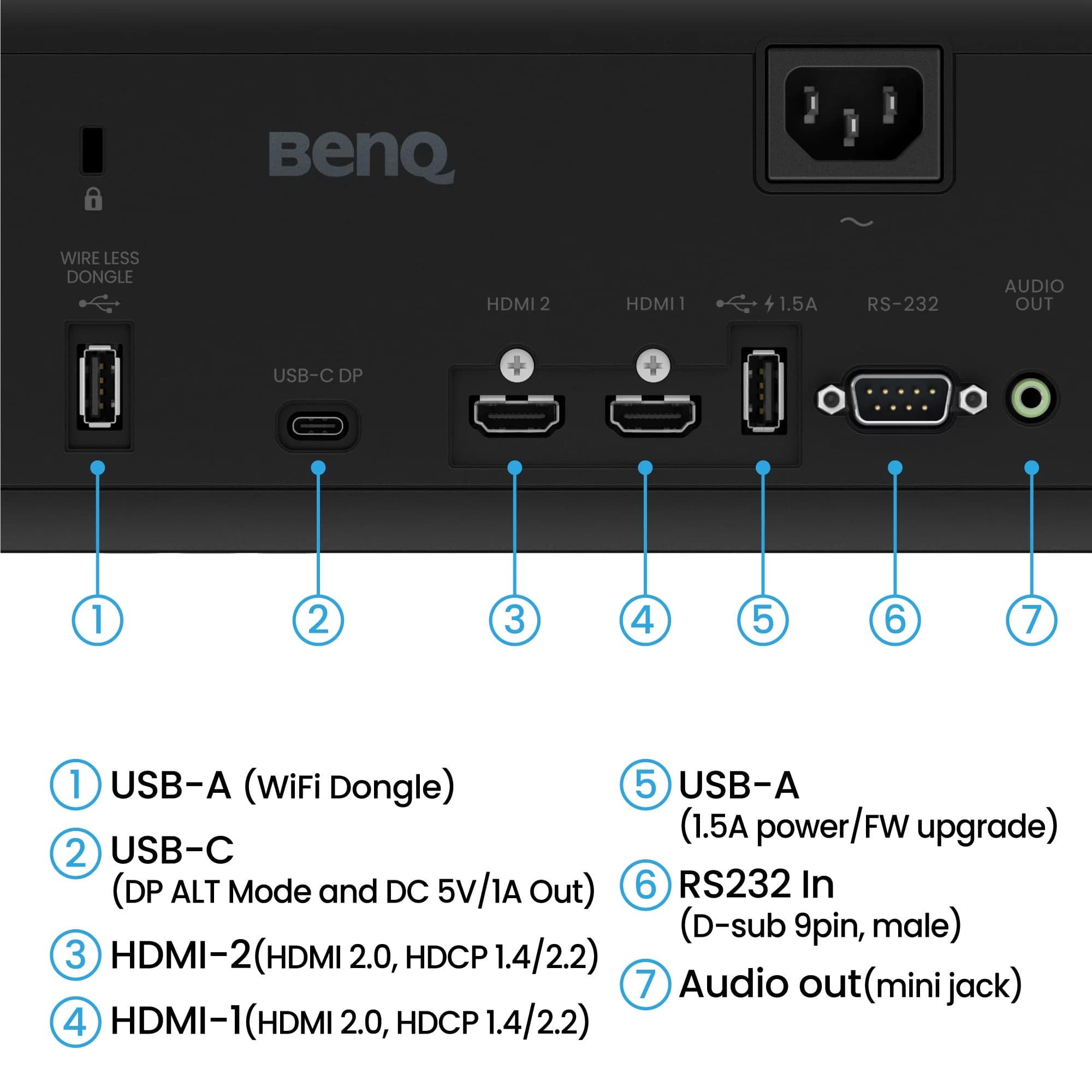

HDMI inputs
Two HDMI 2.0b with HDCP 2.2

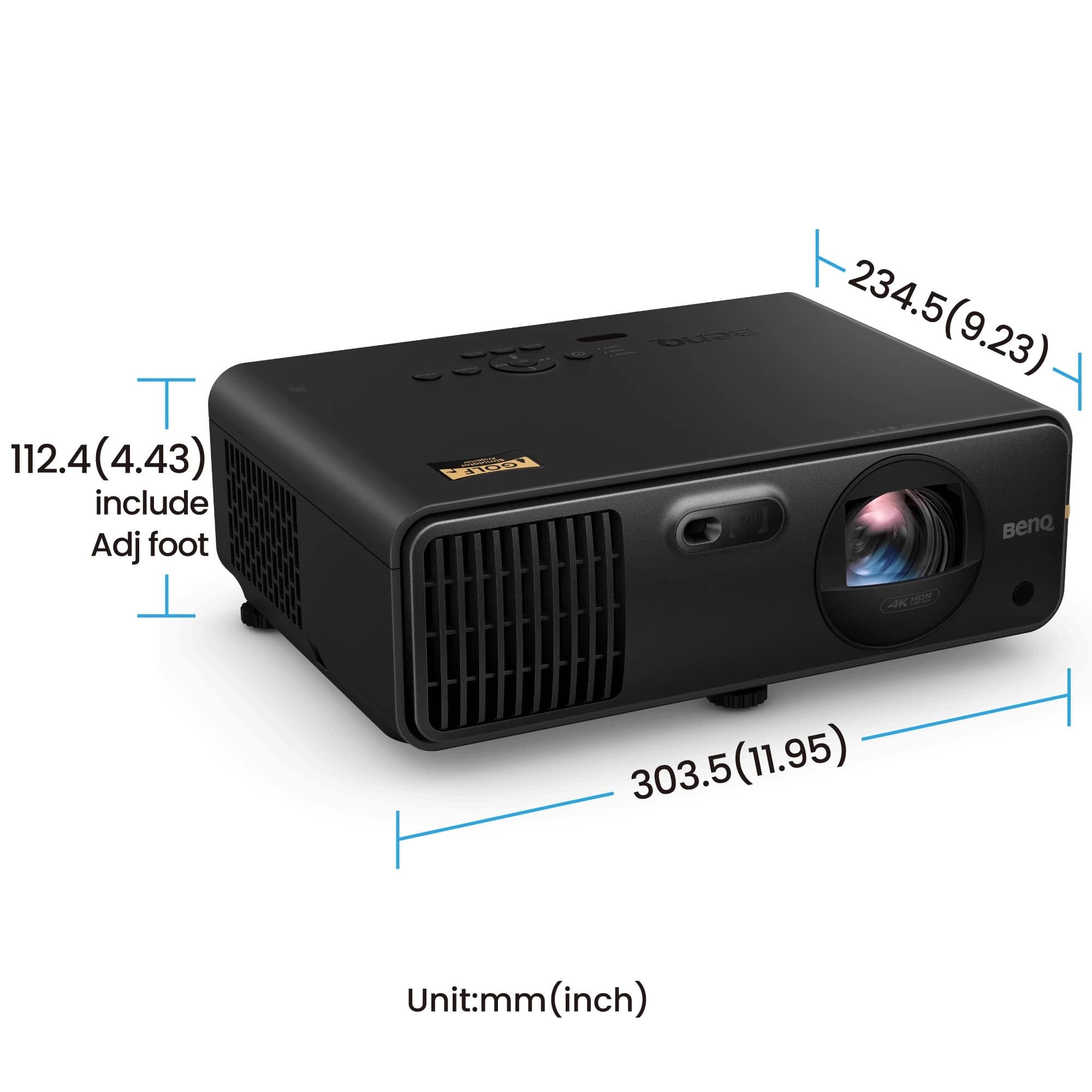

Dimensions
11.9 inches wide by 4.4 inches high by 9.2 inches deep

Weight
7.5 pounds
